Impact Charpy V-Notch Testing
The Impact Charpy Test is a method used to determine the absorbed energy in joules of a metallic material. It also allows for the determination of the material’s impact strength.

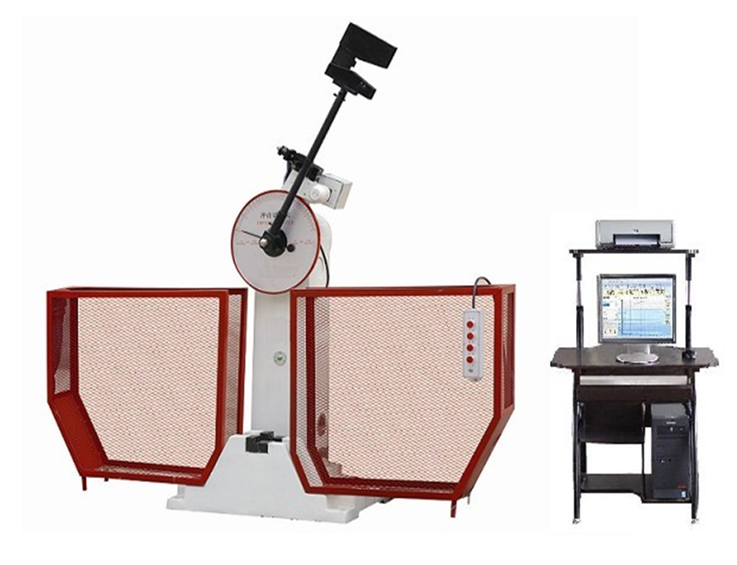

Make: Jinan, Model JBW-500
Features of the equipment
- High positioning accuracy eliminates
human influence and yields quick results - Fully automatic, highly productive, and safe
- Impact energy: 250J, 500J
- Impact velocity: 5.4m/s
- Raised angle :150°
- Standard span: 40mm
- Size of specimen: 10 x 10 x 55mm
- Test results can be automatically calculated.
- Can automatically measure the swing
period 100 times. - Supports exporting test reports to
Microsoft Word 2000 and Excel 2000 or
higher versions.

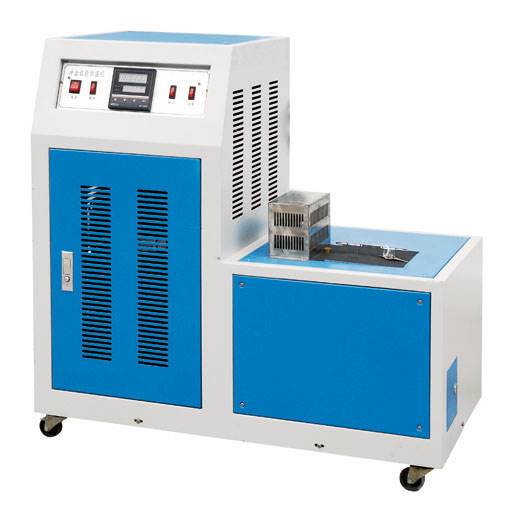

The Impact Test Low-Temperature Freezer is a refrigeration instrument designed according to ISO and ASTM standards. This freezer employs a cycle mixing method based on the heat balance principle to automatically and uniformly cool samples while maintaining the desired temperature. It utilizes high-precision, selfadjusting instruments and platinum-iridium sensors, ensuring high precision, excellent resolution, ease of operation, and high efficiency.
Specifications:
- Type:CDW-60
- Parameters: Range of temperature: -60°~30
- Precision of temperature control: ≤±0.5
- Digital time: 0~100 minute
- Precision of instrument: resolution 0.01
- Medium: Ethanol or other non freezing solution
